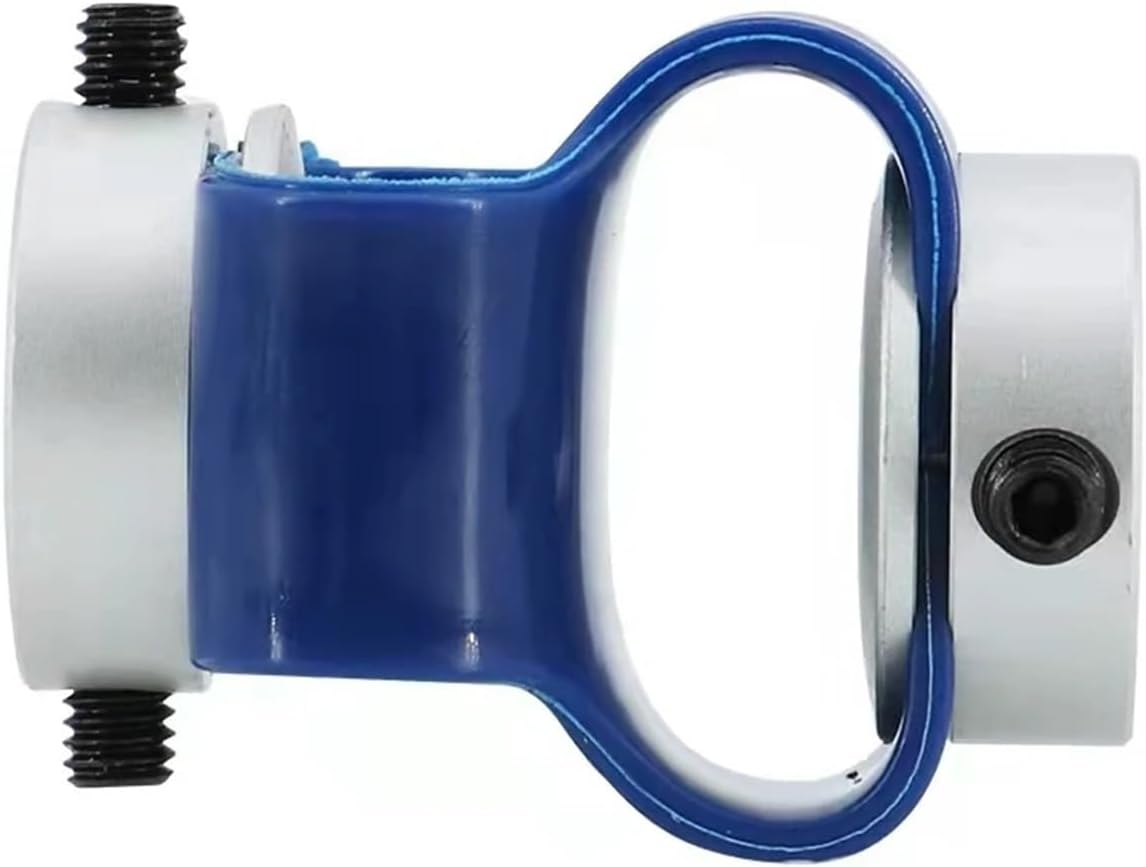

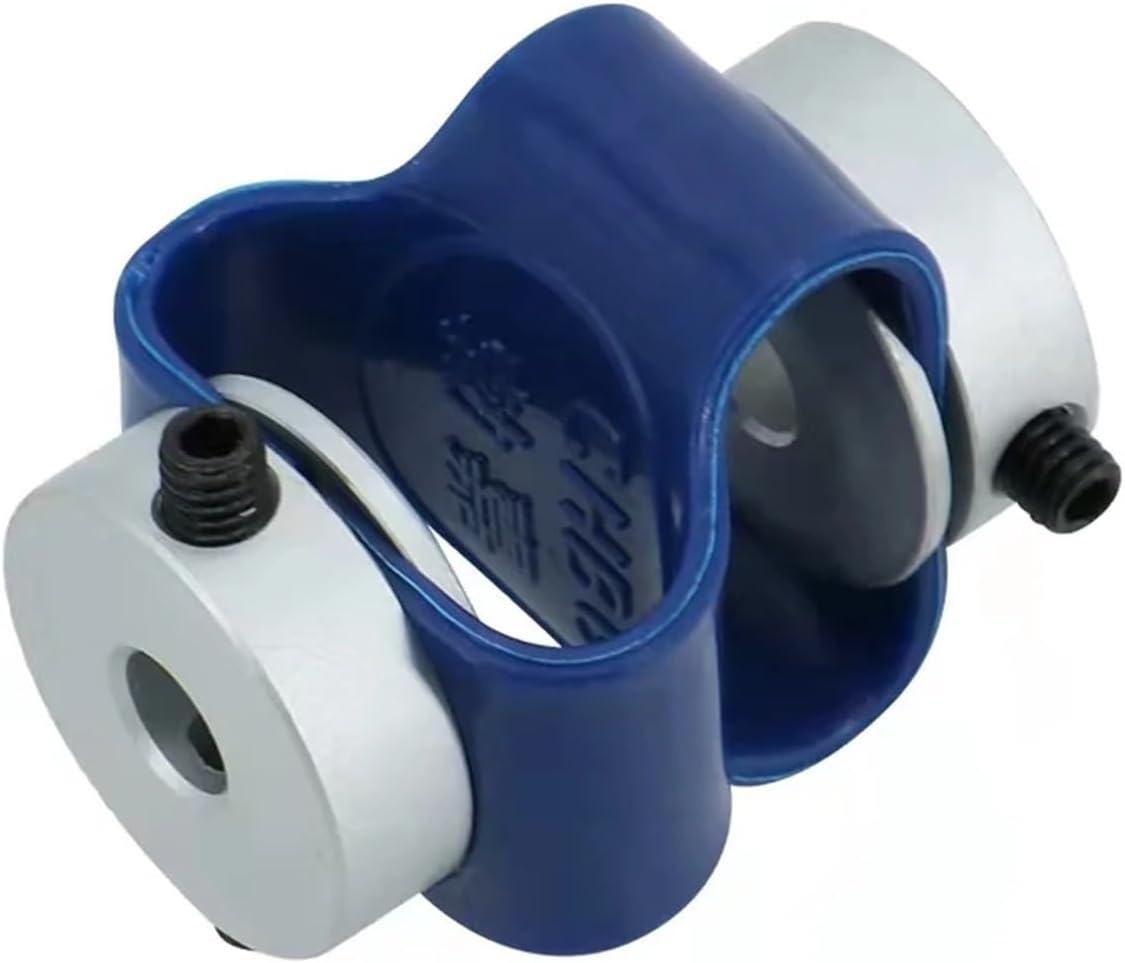

8-Font Coupler D23L24 D23L32 Double Loop 8 Font Flexible Alumnum Alloy Encoder Coupling for Stepper Motor Shaft Clutch(D23L32 7x7)

CouplingsCommon CouplingsDIFFERENT 8-FONT COUPLINGSOuter SizeOptional Inner HoleD23 L243/4//5/6/6.35/7/8mmD23 L323/4/5/6/6.35/7/8mmD27 L304/5/6/6.35/7/8/9/10/11mmD27 L404/5/6/6.35/7/8/9/10/11mmD40 L505/6/6.35/7/8/9/10/11/12/12.7/13/14mmD40 L605/6/6.35/7/8/9/10/11/12/12.7/13/14mm1PCS 8-font Coupler1. , Concave convex structure2. High precision3. High strength4. Buffer resistance and corrosion resistance5. Long Service LifeAluminum alloy surface oxidation treatmentImported polyoxymethylene resin rubber padGrade 12.9 high strength screwScrewHexagon socket set screw with concave endRubber ElastomerGood softness, not easy to twistThe user is allowed to have a large range of eccentricity and deflection angle of the two axes.Aluminum Alloy Shaft SleeveSelected aviation aluminumHigher strengthProduct ParametersModel: LS 8-font CouplingScrew: Grade 12.9 High Strength ScrewMaterial: Aviation AluminumProduct Features:It can absorb large deflection angle, eccentricity and axial movement at the same time;Fully absorb impact and vibration;No lubrication;Low inertia moment;Electrical insulation;Product application: EncoderSize Comparison TableModelD(mm)L(mm)D1-D2(mm)M(mm)L1(mm)L2(mm)L3(mm)L4(mm)Screw Tightening (N.m)LS-D-D23L24(back pressure)16243-8M3.08 5 23271.2LS-D-D23L3216323-8M3.08 3 23271.2LS-D-D27L30(back pressure)20304-11M4.0106 28322.5LS-D-D27L4020404-11M4.0104 28322.5LS-D-D40L50(back pressure)26505-14M5.0149 455010LS-D-D40L6026
