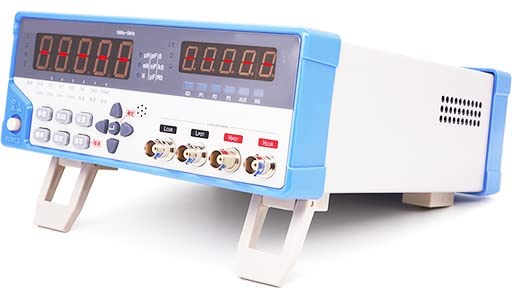

LCR Meter Gauge Desktop LCR Meter Tester Inductance Resistance Capacitance Test Instrument with Test Functions L C R Z D Q Accuracy 0.25% Measurement Frequency 100Hz 120Hz 1kHz 10kHz

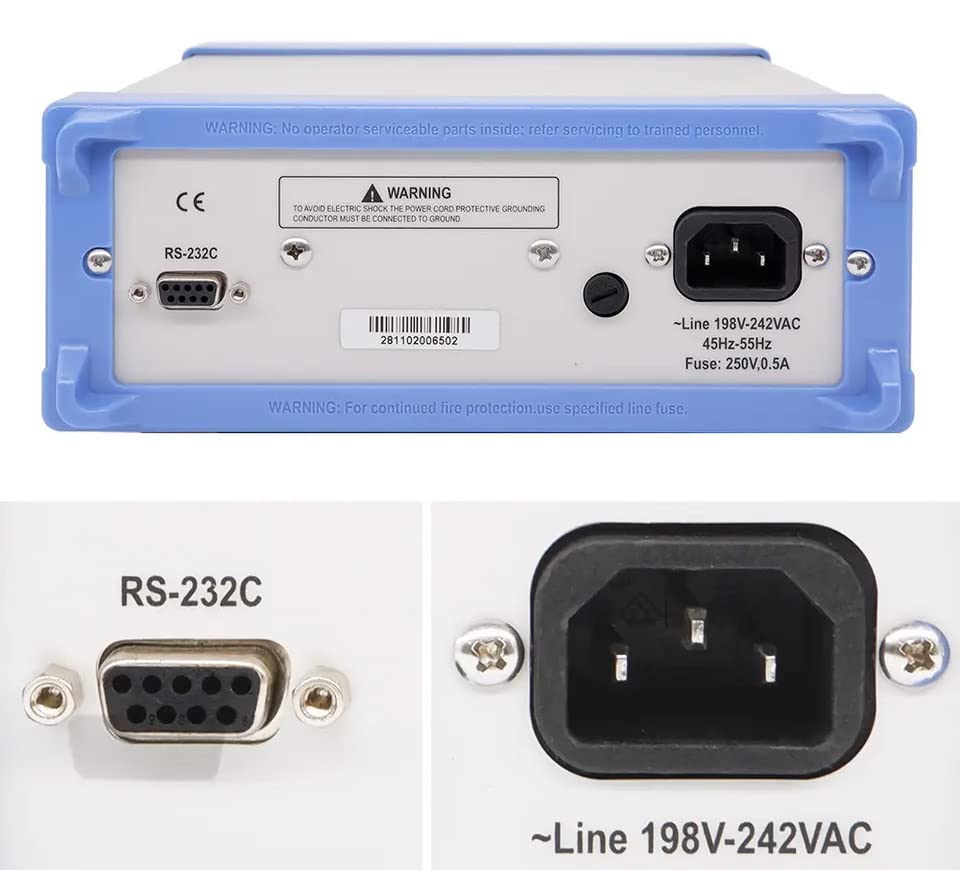

YFYIQI LCR Meter Gauge Desktop LCR Meter Tester Inductance Resistance Capacitance Test Instrument with Test Functions L C R Z D Q Accuracy 0.25% Measurement Frequency 100Hz 120Hz 1kHz 10kHz Features: Principle parameter 0.8 inches LED display, sub parameter 0.5 inches LED display. Display main parameter and sub parameter simultaneously, 5 digits display. Display A: L, C, R, Z Display B: Q, D Short and open zero clearing Comparator (sorting) function: 5-bin sorting Beep Feature: OFF/P1/P2/P3/AUX. Specification: Test Functions:L,C,R,Z,D,Q Accuracy:0.25% Measurement Frequency:100Hz,120Hz,1kHz,10kHz Measurement Range:Auto/Hold, 6 ranges Measurement Speed:SLOW: 3 times/s, FAST: 10 times/s Display Range: L: 0.01μH-9999H C: 0.01pF-9999μF R,Z: 0.0001Ω - 99.99MΩ D, 0.0001–9.999 Q: 0.0001–999.9 Source Resistance:30Ω,100Ω Display Reader：29999 Equivalent Circuit：Serial and Parallel Signal Level:0.1Vrms, 0.3Vrms and 1Vrms Comparator:5 Bins: P1/P2/P3/AUX/NG Adjustment:OPEN/SHORT Zeroing Beep Feature:P1, P2, P3, AUX, NG, OFF Power Supply:AC 198V-240V, 50Hz-60Hz;10W MAX

• Test Functions:L,C,R,Z,D,Q;Accuracy:0.25%;Measurement Frequency:100Hz,120Hz,1kHz,10kHz
• It has built-in comparator function, 5 bins sorting display and sorting beep setup.
• Principle parameter 0.8 inches LED display, sub parameter 0.5 inches LED display.
• Brand new designed LCR meter has the higher cost performance, it is easy to operate, can meet the precision measurement and volume production's requirements for component manufactures, universities.
• It is a general purpose digital LCR meter, it is a desktop type LCR meter that adopts high-performance ARM micro processor. Four frequency points are available: 100Hz,120Hz,1kHz,10kHz, signal level 0.1V、0.3V and 1V is selectable and source resistance 30Ω、100Ω is selectable.
