Metal Concealed Hinge Jig with Woodworking Tools, 35mm Concealed Door Hinge Jig for Cabinet Hinges Mounting

High quality aluminum alloy, high quality processing, easy to use. 35mm concealed hinge jig, precise locking hinge drilling jig hole position, using high quality aluminum alloy material, precision manufacturing, sharp drill bit, accurate positioning, easy to operate, wear-resistant and durable, hinge jig can be used for many years. Lonsge concealed hinge jig kit is not only suitable for your home operation, such as drilling holes for cabinet/kitchen/wardrobe/cabinet doors, but also a great tool for furniture factories and woodworking enthusiasts. Installation steps: Step 1. Install the 35mm hole opener and lock the limit ring. Step 2. Adjust the black fixing tool on the fixture (tool adjustable fixing plate size 15-25mm). Step 3. Install the locator and drill bit in the box. Step 4. Tighten the drill handle and press the hole down evenly to a depth of 12-13mm. Step 5. Drill 2mm screw holes on each side of the left and right sides.

• 【High Quality Aluminum Alloy】35mm Concealed Hinge Boring Jig Kit is made of high quality aluminum alloy, with precise manufacturing, accurate positioning, sharp drill bit, wear-resistant and durable, anti-corrosion and anti-rust, one hinge jig can be used for many years.It's the best woodworking hole opening auxiliary tool.
• 【Easy operation】Drilling is easy with the 35mm Hinge Drilling Jig. Adjustable dials for 3mm, 4mm, 5mm and 6mm hinge offsets make it easy to help you choose your drilling position. Use the drill to attach the drill bit for an easy and fast drilling experience. Finally, the auxiliary locator holes on both sides allow the screws to be easily screwed into the wood panel.

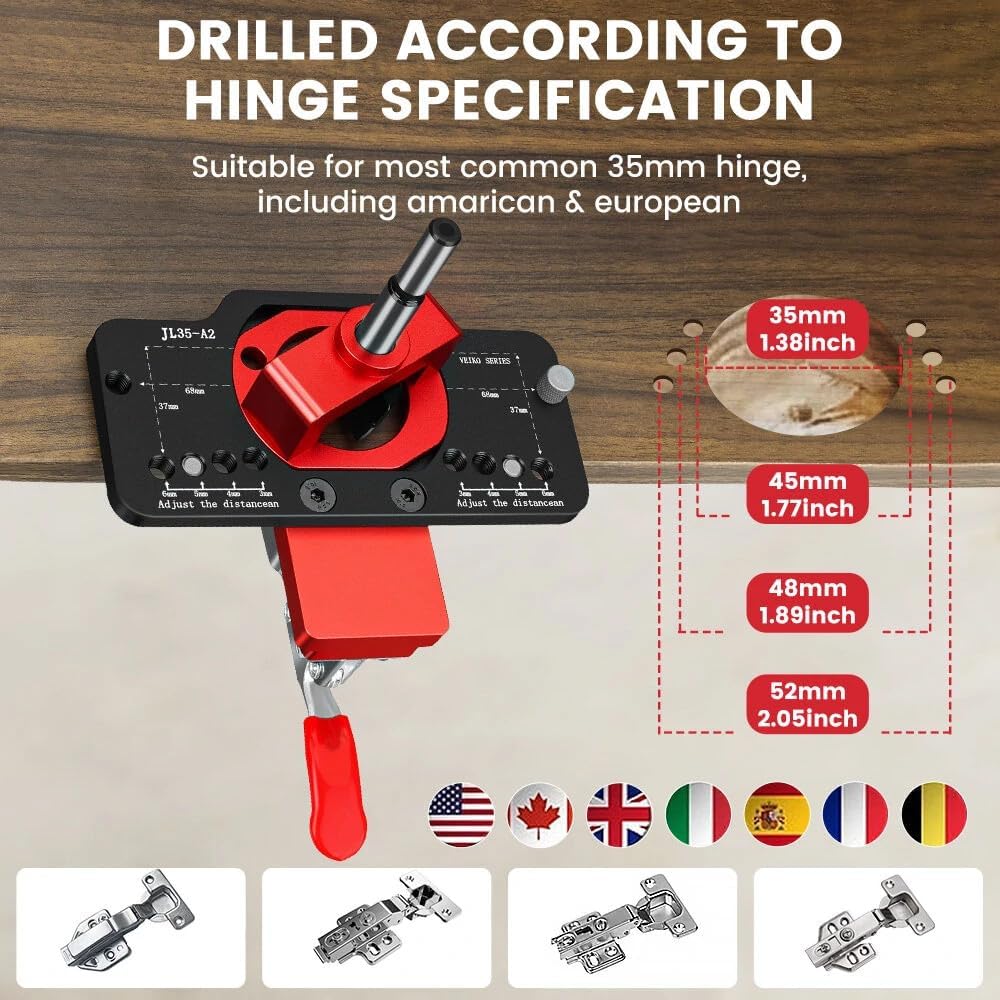

• 【Wide Application】35mm hinge clips are widely used in hinge opening installation, door hinge drilling and positioning, woodworking opening assistance, 35mm opening to the edge distance of 5mm, applicable to most common hinges, allowing you to easily install multiple cabinet doors.
• 【How to use】 1. Install the 35mm hole opener and lock the limit ring. 2. Adjust the black fixing tool on the fixture (tool adjustable fixing plate size 15-25mm). 3. Install the locator and drill bit in the box. 4. Tighten the drill handle and press the hole down evenly to a depth of 12-13mm. 5. Drill 2mm screw holes on each side of the left and right sides.

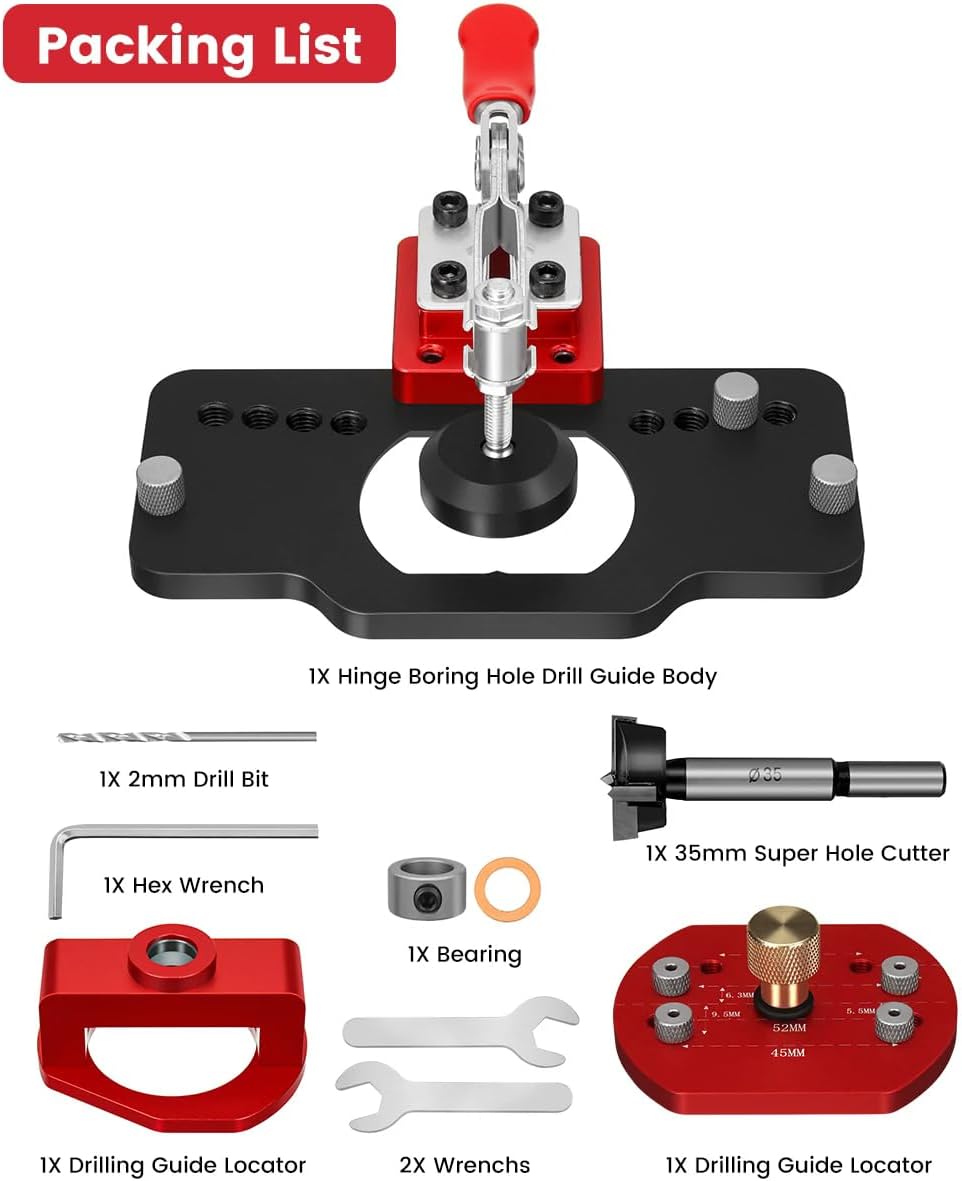

• 【Package List】1*Hinge boring hole drill guide body, 2*drilling guide locator, 1*35mm hole opener, 1* 2mm drill bit, 2*wrench,1*bearing. It's the best woodworking hole opening auxiliary tool.
